Bionik BI/004HPGO 36v BRUSHLESS Automatic Barrier Kit



4 Metre Barrier Automation Kit



The Brushless Bionik 36V barrier is a super intensive barrier that has a boom of up to 4 metres and a built-in digital control panel with the on-board encoder. Perfect for a high intensive use car park or controlled area.

The Brushless Bionik 36V DC super intensive barrier has a boom of up to 4 metres and a built-in digital control panel with on board encoder. We use Brushless because it?s robust and elegant, for the access to condominiums, commercial premises, industrial sites and residential areas.

The Bionik is the entry barrier model from Roger Technology with digital processing due to its 36V Brushless motor with a permanent magnetic field. The Bionik support and protection arm is made from die-cast aluminium, directly connected to the reducer via a special system for pre-reducing the mechanical stress of the mechanical boom movement and is continually monitored in all positions with its absolute encoder.



£2,484.84 / £2,070.70 Ex VAT

Description

Click to view.

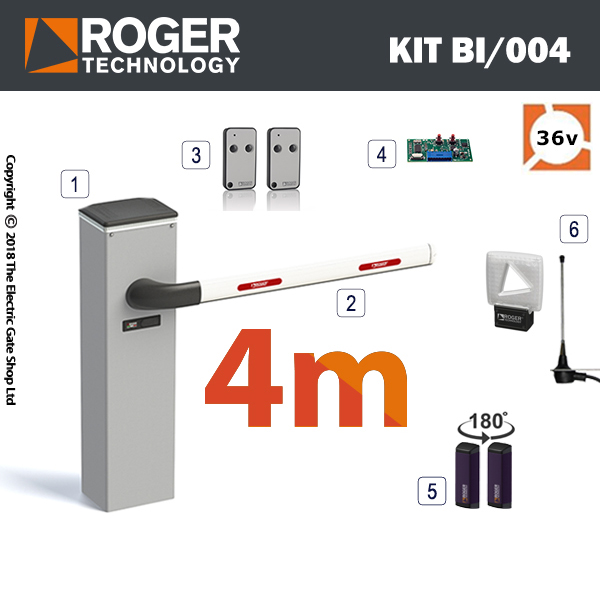

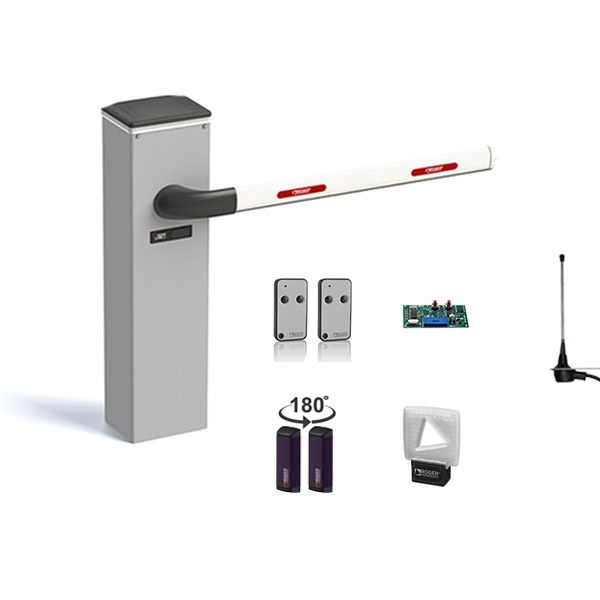

Electric Gate Kit Contents:

Kit Type 1:
1) Roger Technology 4m Bionik?BI/004?Barrier
2) 4m Barrier Boom
3) E80/TX52R/R Remote Control (x2)
4)H93 Receiver for above
5) Roger Technology M90 180? Photocells
6) Aerial / Beacon

7) Fixed End Support

If you wish to include a fixed support with a Kit Type 4 including skirt: please add this at the checkout page.

Brushless Barriers:

The revolutionary three-phase Brushless motor allows unlimited use of the barrier and has ultra-low power consumption. The gear motor is a mechanical jewel made entirely of aluminium, steel and bronze. All the helical gears are cut with a 15 degree tilt, assembled on top quality bearings and inserted in perfectly machined seats to guarantee the absolute precision of the gear axes.

The barrier kit contains the barrier box/motor, spring, receiver, two remotes and a set of photocells, the boom/arm comes separately. As always an arsenal of accessories from lighting kits, skirts and supports.

Additional information

Weight 30 kg
Select Barrier Type

Bionik 4HP Bionik Barrier Kit
