Bionik BI/008 36v BRUSHLESS Automatic Barrier Kit

Description

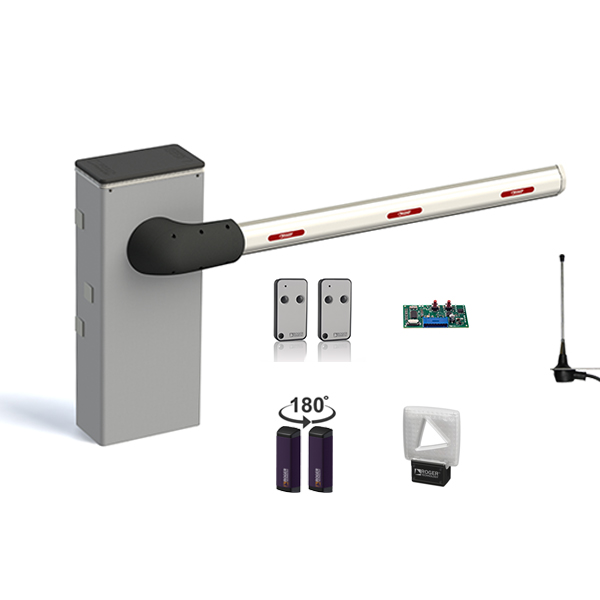

Barrier Kit Contents:

Kit Type 1:
1) Roger Technology 8m Bionik BI/008 Barrier including SP/85/AS/02 Spring
2) 8m Barrier Boom
3) E80/TX52R/R Remote Control (x2)
4) H93 Receiver for above
5) Roger Technology M90 180? Photocells
6) Aerial / Beacon
7) Fixed End Rest (Required with an 8m boom)

Kit Type 2: All of the above but with an 8) Fixed End Rest With Magnetic Suction Cup
Kit Type 3: All of the above + 9) Skirt
Kit Type 4: All of the above but with an 8) Fixed End Rest With Magnetic Suction Cup & 9) Skirt

The Brushless Bionik 36V DC super intensive barrier has a boom of up to 8 metres and a built-in digital control panel with on board encoder. We use Brushless because it?s robust and elegant, for the access to condominiums, commercial premises, industrial sites and residential areas.

The Bionik is the entry barrier model from Roger Technology with digital processing due to its 36V Brushless motor with a permanent magnetic field. The Bionik support and protection arm is made from die-cast aluminium, directly connected to the reducer via a special system for pre-reducing the mechanical stress of the mechanical boom movement and is continually monitored in all positions with its absolute encoder.

Brushless Barriers:

The revolutionary three-phase Brushless motor allows unlimited use of the barrier and has ultra-low power consumption. The gear motor is a mechanical jewel made entirely of aluminium, steel and bronze. All the helical gears are cut with a 15 degree tilt, assembled on top quality bearings and inserted in perfectly machined seats to guarantee the absolute precision of the gear axes.

The barrier kit contains the barrier box/motor, spring, receiver, two remotes and a set of photocells, the boom/arm comes separately. As always an arsenal of accessories from lighting kits, skirts and supports.
