Description
Double Underground Gate Automation Kit
The Roger Technology BR21/361 Brushless underground electric gate kit features Steel cut gears for long life, maintenance free motors.
Electro-mechanical reduction gear for swing gates up to 5.0m in width. The sturdy diecast aluminium housing has been structurally designed to withstand the high forces involved. When installed it is totally concealed inside the foundation box.
BR21/361 Electromechanical actuator BRUSHLESS, low voltage, super intensive use, single bearing, 2m cable, with native encoder on board, irreversible, ideal for swing gates with leaf up to 5.0m lengths, with mechanical stopper in opening and closing.
Electric Gate Kit Contents:
[1] Synus/2 (x2)
[2] H93 Receiver Card (x1)
[3] M90 180 Degree Photocells (x1)
[4] RL650 Release Lever (x2)
[5] BR21/361 36V Super Intensive Motor (x2)
[6] FU100 Foundation Box (x2)
[7] Edge 1 ‘Digital’ Brushless Control Panel (x1)
[8] Aerial / Beacon (Design may vary)
Each motor comes standard with a LT300 lever, see below links to different lever types:
The LT300/90 is required if mounting the motors on the inside of the pillars with the gates between the pillars.
LT300/90SX -?Left hand
LT300/90DX – Right hand
The LT301 is required if wanting 180 degree opening by using a chain drive. This requires physical stops.
Each motor comes standard with a RL650 release mechanism, see below links to different release types:
The RL650/R is a reinforced steel version of the RL650.
The RL652 is the European cylinder key.
Each release comes with a standard <RL6?> .
The RL663 is a long release lever.
Types Of Foundation Box:
FU100 Cold Dip Box Galvinised and Lid.
FU101 Hot Dip Box Galvinised and Lid.
FU102 Hot Dip Box Galvinised With Stainless Steel Lid.

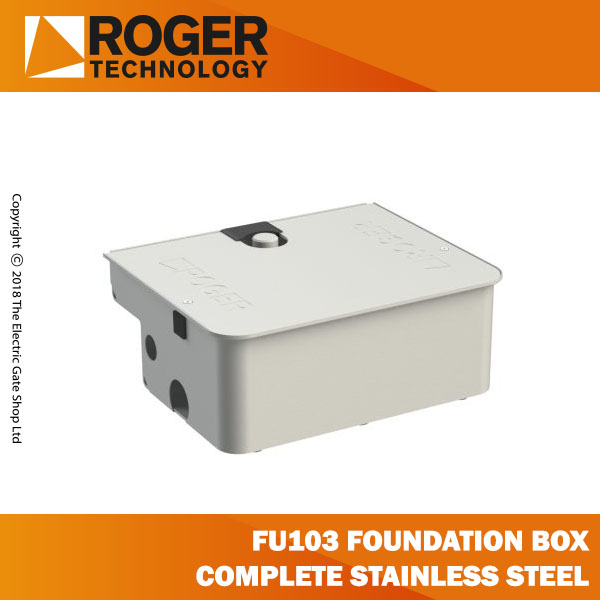

FU103 Fully Stainless Steel Box and Lid.
Compatible Locks:
All Roger Technology electronics come with a full 2 year warranty and 3 year warranty for all Roger Technology motors.
