Description
Mortice flush mounted stainless steel vandal resistant maglock 12 / 24Vds magnetic lock.
- Operating voltage 12~24Vdc
- Stainless Steel
- Fail-Safe (Power-to-Lock)
- Weather resistant: IP65
- Vandal resistant
- Holding force up to 600lbs (275Kg)

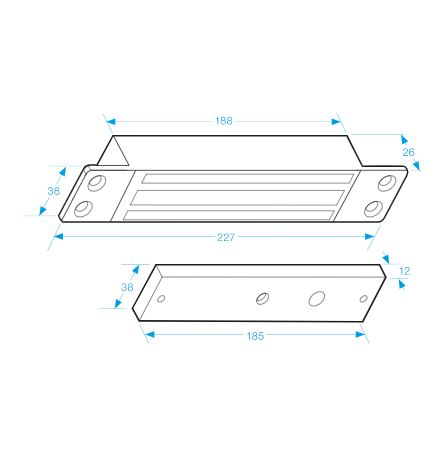

.JPG)
Magnetic Lock Technical Specification:
Voltage tolerance: ?15%.
Current draw: 300mA at 12Vdc (at temperature 20?C).
Operating temperature: -10~55?C (14 to 131?F).
Lock?s surface temperature: Current temperature ?20% (when power is on).
Humidity: 0~95% non-condensing.
Special Zinc finishes for magnet and armature plate.
Weight: 1.5kg (approx).
Current draw: 300mA at 12Vdc (at temperature 20?C).
Operating temperature: -10~55?C (14 to 131?F).
Lock?s surface temperature: Current temperature ?20% (when power is on).
Humidity: 0~95% non-condensing.
Special Zinc finishes for magnet and armature plate.
Weight: 1.5kg (approx).
