Magnum Galvanised Cantilever Sliding Gate Kit 5890mm-8200mm Opening – Magnumkit1

Description

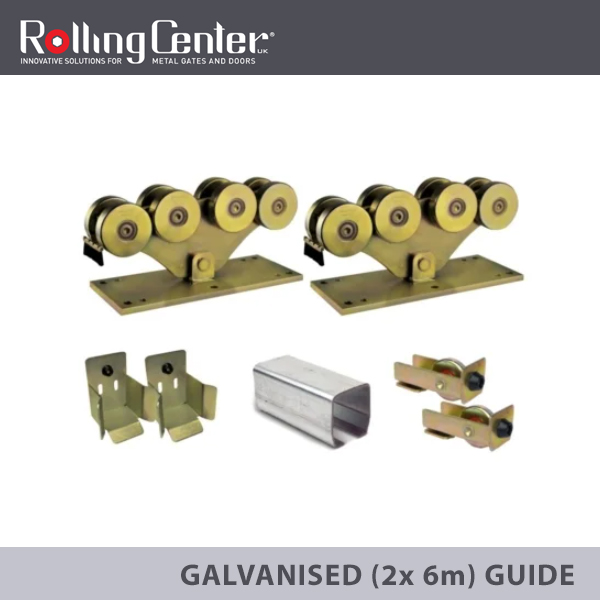

Kit Contains:

(2x6m) Galvanised cantilever guide track for openings between 5890mm-8200mm.

• CA4RMS Magnum Carriage for sliding cantilever gates. Up to 16 metres clear opening,1200kg max gate weight.? S235 structural grade steel body with C45 case-hardened carbon steel bearings.

• 41G/S Support wheels for sliding cantilever gates. S235 structural grade steel body and case-hardened C45 carbon steel roller bearing, galvanised finish

• 50G Meeting points for sliding cantilever gates. S235 structural grade steel, galvanised finish.
• GIPI6RMZ6 x2 track for cantilevered sliding gates. S280GD structural grade steel
• 153G Plastic end caps for GIPI and G-A cantilever gate guide tracks

The Cantilever pdf. sheets (below) will give you the dimensions for fitting.? Our kits have galvanised or steel track, and all you need to know is the actual opening of the gate between the pillars or posts.? Any additional to account for overhang is included in our kits, ?all the calculations?have been done.

Rolling Centre Cantilever Technical Information
