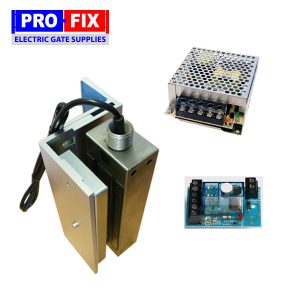

Description
Operating voltage 12Vdc
Fail-Safe (Power-to-Lock)
Stainless Steel
Holding force up to 600lbs (272Kg)
Vandal Resistant
Weather Resistant – IP65
Magnetic Lock Technical Specification:
Voltage tolerance: 15%.
Current draw: 300mA at 12Vdc (at temperature 20C)
Operating temperature: -10~55?C (14 to 131?F).
Lock’s surface temperature: Current temperature 20% (when power is on).
Humidity: 0~95% non-condensing.
Special Zinc finishes for magnet and armature plate.
Weight: 1.5kg (approx).
